The Sx2000 is built to deliver powerful performance. Making it perfect for compressors, conveyors, machine tools, elevators, textiles, fans, pumps, plastic extruders, wire drawings, etc
Quantity

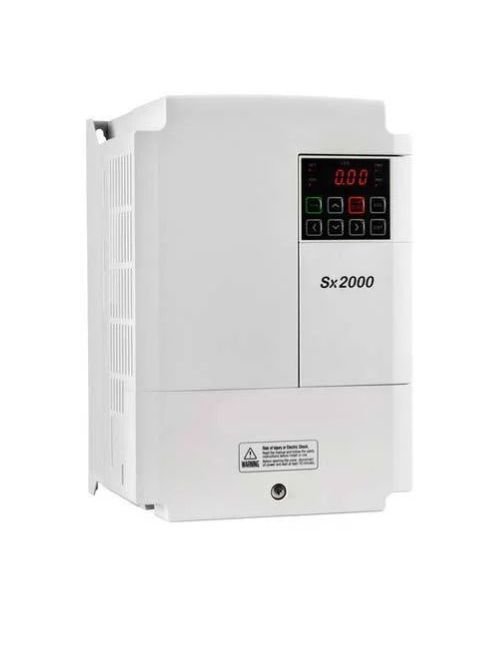

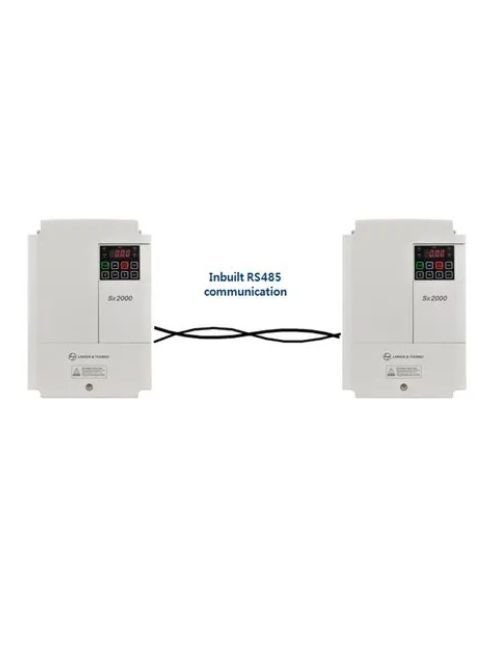

The Sx2000 is built to deliver powerful performance. It handles loads up to 75 kW (HD) / 90 kW (ND) – making it perfect for compressors, conveyors, machine tools, elevators, textiles, fans, pumps, plastic extruders, wire drawings, etc.Range: Single-Phase 230V - 0.75 to 3.7kW Three-Phase 230V - 0.75 to 18.5kW Three-Phase 415V - 0.75 to 90kW IP66 Three-Phase 415V - 0.75 to 22kW Enclosure: IP20 standard & IP66 Optional Product Details: V/F, Sensorless Vector Control, Slip compensation Starting Torque: 150% at 3 Hz for V/F, 200% at 0.5Hz for Vector Control Conformal Coating complying to IEC 60721-3-3 class 3C2 Built-in RS485 Modbus Peer to Peer Communication to share I/O's Built-in Brake Control Inbuilt PLC functionality Component Life Monitor Inbuilt PID Multi Keypad No Motor Detection Built-in DC Reactor from 37kW to 90kW Built-in Braking Chopper till 30kW Dual rating operation: Designed to be used for heavy and normal duty applications. Overload capacity: Heavy duty operation: 150% of rated current for 60 sec Normal duty operation: 120% of rated current for 60 sec Multi-Keypad: Optional LCD keypad of Master drive enables to access every drive (Slave) connected via inbuilt RS485 communication so that the users adjust and monitor parameters easily. P2P communication: Peer to peer communication among the drives allows sharing any I/O via inbuilt RS485 communication. It might be useful in case of limited number of I/O points for a certain system
